Our sugar cone making machine produces both egg rolls and ice cream cones from a single production line, with capacities ranging from 500 to 1,200 pieces per hour. Available in 6, 9, 12, and 15-mold configurations, it suits bakeries, snack shops, and ice cream parlors looking to manufacture wafers in-house.
Automatic Egg Roll Wafer Machine | Crispy Egg Roll Biscuit Production Machine in 2026 #eggroll
video of automatic rolled sugar cone machine
How does Sugar Cone Making Machine Work?
This eggroll crispy cone machine operates in two stages:
Stage 1 - Wafer Baking: Precision nozzles spray liquid batter onto heated plates. The plates close automatically and bake the batter into thin, crispy wafers. Each plate has its own temperature control.
Stage 2 - Cone Rolling: Baked wafers are transferred to a separate cone roller, which shapes them into cylindrical or conical forms. Two roller models are available, with customizable diameters and a minimum length of 5 cm.
Product Output of Rolled Waffle Sugar Cone Baking Machine
Our crispy sugar cone making machine produces two main product types:
Egg Rolls: Long, cylindrical rolls — a classic Asian snack format
Sugar Cones: Conical ice cream cones in two shapes, formed using the optional cone rolling attachment
finished products of ice cream cone wafer cone machine
Technical Specifications of Eggroll Crispy Cone Machine
Model
Electric Motor(kW)
Output (pieces/hour)
Heating Method
Natural Gas (per square meter)
Liquefied Gas (kg)
Finished product thickness
Wafer dimensions
Machine dimensions (cm)
Machine weight
Cone Rolling machine
6
10
300
Electric/Gas
0.5-4MM
7-20CM
140X140X125
250
Single-head
9
14.5
400-600
0.6
0.9
160X160X125
270
12
19
600-800
0.8
1.2
195X195X170
300
Double-head
15
23
800-1000
1.1
1.6
205x205x175
330
18
28
1000-1200
1.4
2
215x215x170
360
specifications of crispy egg roll making machine

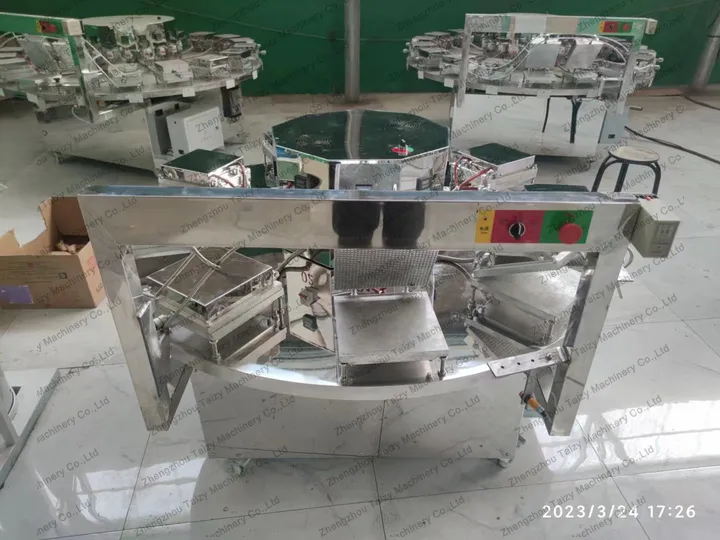

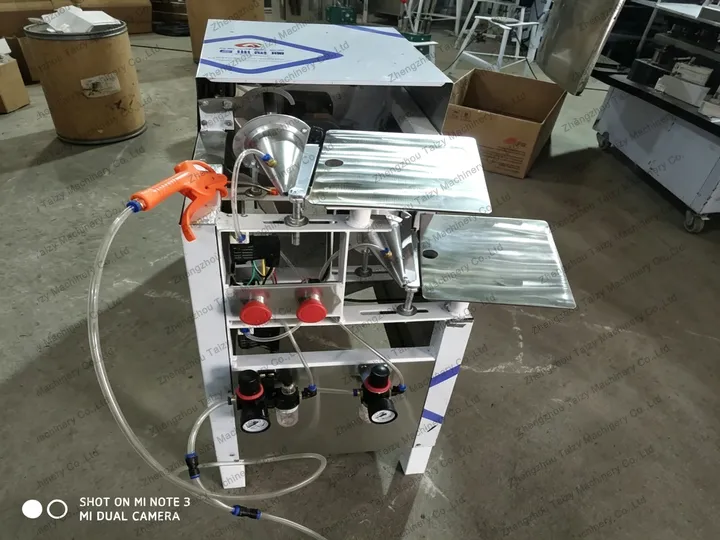

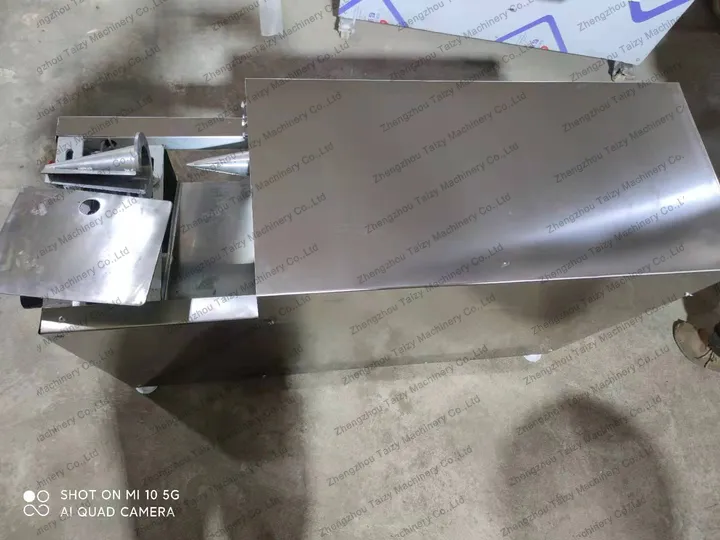

wafe cone making machine1-head cone roller2-head cone rolling machine
Notes to our rolled sugar cone making machine:
Model: Based on the number of baking trays (e.g., 6, 9, 12, 15)
Wafer Thickness: 0.5-4 mm (adjustable)
Wafer Size: 7-20 cm (adjustable)
Plate Size: 24 × 24 cm (custom sizes available)
Cone Length: From 5 cm (customizable diameter)
Required Accessory: Air compressor (sold separately)
Model 6: Only electric heating
Key Features of Automatic Sugar Cone Making Machine
Independent Plate Control: Each plate operates separately with its own temperature setting
Custom Plate Patterns: Engraved patterns tailored to your specifications
Flexible Heating: Electric heating on all models; gas heating on 9+ mold units
Auto Spray System: Batter is dispensed and shut off automatically
All-in-One Setup: Include batter tank, main machine, and air connection
Scalable Capacity: Choose from 6 to 15 molds based on your output(500-1200 pcs/h) needs

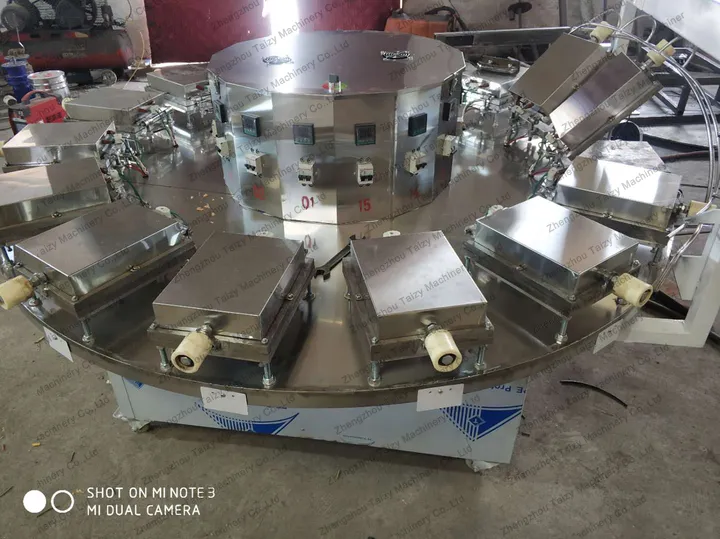

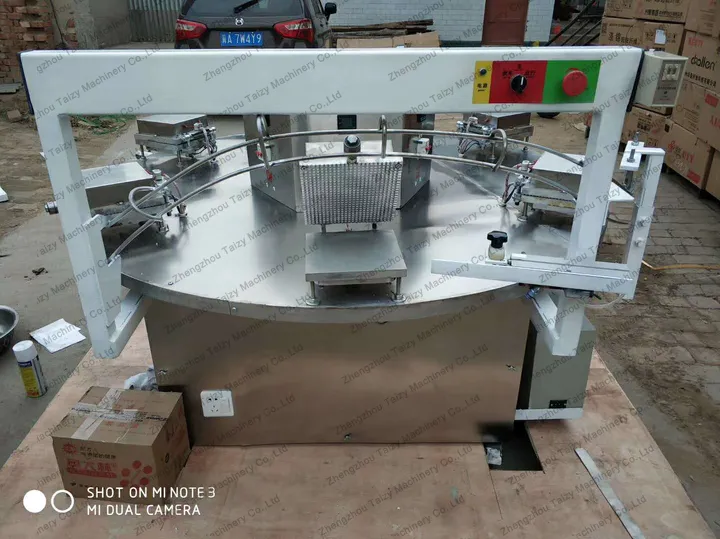

waffle cone maker machine with 6 moldsice cream sugar cone making machine with 15 molds
Optional Equipment for Ice Cream Sugar Cone Machine
Batter Mixer: Automated batter preparation

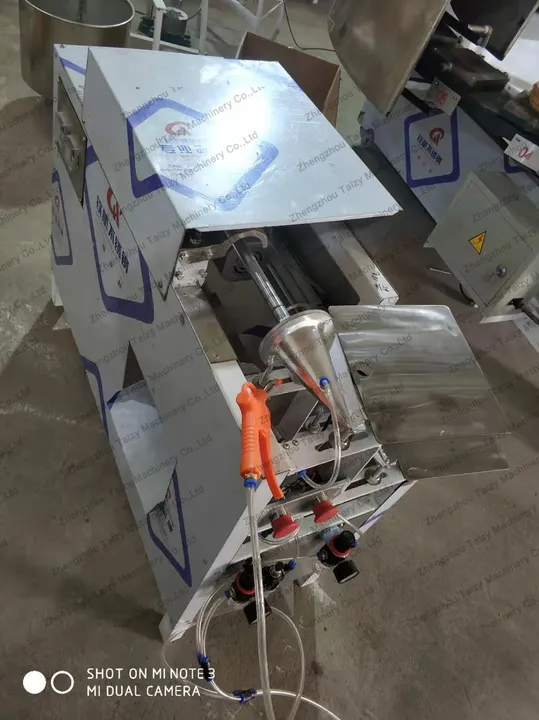

Cone Rolling Machine: Single-head or double-head roller for cone forming
Packaging Machine: Sealing and final packaging

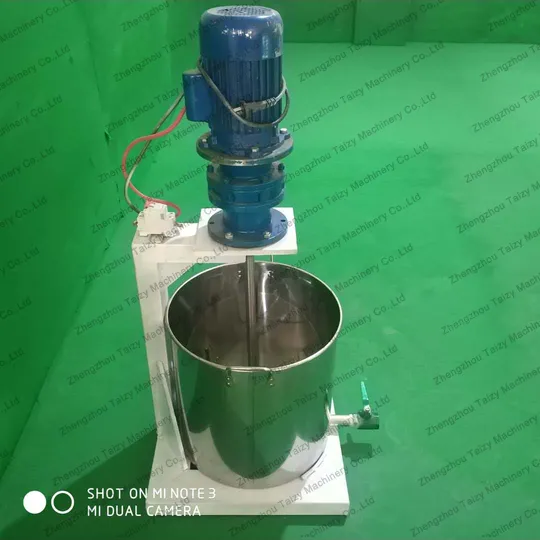

batter mixersugar cone rolling machine
Choosing the Right Model for Sugar Eggroll Cone Making
Four factors help match you to the right sugar cone making machine configuration:
Product Format: Egg rolls need only the baking machine; sugar cones also require the cone roller
Size Requirements: Wafer size (7-20 cm) and cone diameter (5 cm minimum) are customizable
Heating Preference: Electric is standard; gas offers faster heat-up for higher-output models
Target Output: Match mold count to your hourly production goals (500-1,200 pcs/h)
Applications of TAIZY Rolled Sugar Cone Making Machine
This sugar cone machine is well suited for:
Snack Manufacturers: Egg rolls for retail sale
Ice Cream Shops: Fresh sugar cones on demand
Bakeries: Adding crisp wafer products to existing lines
Food Processors: Contract manufacturing under private labels
Startups: Direct-to-consumer sales with low overhead
applications of crispy egg roll maker machine
FAQ of Sugar Cone Making Machine for Sale
Can this machine produce both egg rolls and sugar cones?
Yes. The baking machine produces flat wafers for egg rolls, while the optional cone rolling attachment shapes them into sugar cones.
What heating options are available?
6-mold models are electric only. 9, 12, and 15-mold models support both electric and gas heating.
